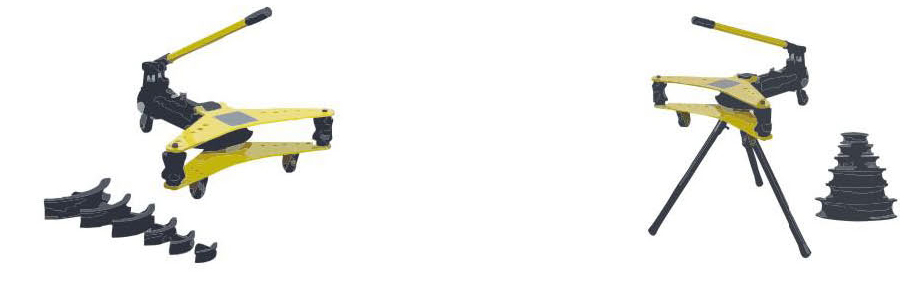

PIPE BENDING MACHINE
PIPE BENDING MACHINE
| MODEL | BLT-2W | BLT-3W | BLT-4W |
| THE LARGEST PRESSURE(MPA) | 44 | 59 | 62 |
| THE LARGEST LENGTH (MM) | 250 | 320 | 420 |
| CRIMPING RANGE (mm) | Φ21.3-60 | Φ21.3-88.5 | Φ21.3-108 |
| MOLD ACCESSORY | 1/2",3/4",1",11/4",1 1/2",2" | 1/2",3/4",1",11/4",1 1/2",2" ,2 1/2",3" | 1/2",3/4",1",11/4",1 1/2",2" ,2 1/2",3" |
| HYDRAULIC OIL | N15 | N15 | N15 |
| WEIGHT(KGS) | 55 | 110 | 162 |
| WALL THICKNESS(MM) | 2.75-4.5 | 2.75-5 | 2.75-6 |
| MEAS(CM) | 78X35X25 | 96X43X25 | 118X46X25 |
